Follow us on Twitter!
Follow us on Facebook!


Go Back   Pixtus - Photography Forum, Photographers, Photo Tips > Photography Information > Equipment Talk


Grip for a Sony A65

This is a discussion on Grip for a Sony A65 within the Equipment Talk forums, part of the Photography Information category; Sony decided not to make a grip for the A65 so challenge accepted. :) I had a old grip from ...

Like Tree3Likes

Reply

LinkBack Thread Tools Display Modes
  (#1) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
Grip for a Sony A65 - 02-18-2012, 04:30 PM


Sony decided not to make a grip for the A65 so challenge accepted. :) I had a old grip from a Sony A350 and started modding away so far this is what I have. The final grip will just be an extra shutter button and better holding and that's it



texascbx likes this.

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
Sponsored Links

Premium Members do not see Google advertisements. SIGN UP today and help support our community.
  (#2) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-22-2012, 02:50 PM


I have figured out how to use both batteries in the grip and am now working on how to use the shutter :)

About to cut the circuit then make the connections to run both batteries


The fake battery in the camera

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!

Last edited by craigb456; 02-22-2012 at 04:33 PM..
Reply With Quote
  (#3) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-24-2012, 01:38 PM


Here is the modded PCB for the batteries


---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#4) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-24-2012, 01:57 PM


Put back together and ready to use



Grip installed and working



Next up is making the shutter button working :)
texascbx likes this.

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!

Last edited by craigb456; 02-24-2012 at 02:11 PM..
Reply With Quote
  (#5) Old
Junior Member

tbrown77073's Avatar

Posts: 3
Join Date: Feb 2010
Location: Houston, Texas
Real First Name: Tom
Camera: Sony a65 / a200 dslr
Can Others Edit My Photos: No
iTrader Rating: 0

Likes Received LIKES Received: 0
Likes Given LIKES Given: 1
02-24-2012, 02:32 PM


What did you do for the battery "Door" did you remove it?

Great job..can't wait to get started on mine!
Reply With Quote
  (#6) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-24-2012, 02:44 PM


Quote:
Originally Posted by tbrown77073 View Post
What did you do for the battery "Door" did you remove it?

Great job..can't wait to get started on mine!
I did not remove the door. The wires are small enough that the door shuts with them coming out. There is a little notch in the door for the blue battery release and it leaves enough room

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#7) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-24-2012, 03:58 PM


It looks like both batteries will not work with the camera, with both installed it gives a "incorrect battery"" error. I have tried a few other ways but still no luck. O well it was worth a try and at least I will not have to remove the grip to change batteries

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#8) Old
Premium Member

tc95's Avatar

Posts: 2,377
Join Date: Nov 2008
Location: Houston, TX, Texas
Real First Name: Tony
Camera: Sigma SD Camera's
Can Others Edit My Photos: Yes
iTrader Rating: 39

Likes Received LIKES Received: 82
Likes Given LIKES Given: 117
02-24-2012, 05:51 PM


Craig...you probably have to put a resister in place somewhere...what's probably going on is the grip is using the batteries in series...and...your output on the Mamp is probably too high for the camera to take....if you can put an inline resister don't know what it would be...you can probably git it ito work...as far as the shutter...you need to know what the Pin-Out is at the top of the battery compartment in the camera...you should have 6 to 9 gold plates for pins to attach too...once you figure out which one is the shutter...you should be ok...two should be for focusing...then the sensor focusing...then the other functions for the camera...

Hope this helps....

---------------------------
Sigma SD1-M Converted to Nikon F & SD14 One Converted to Nikon F and One Converted to Leica R......
Reply With Quote
  (#9) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-24-2012, 06:11 PM


Quote:
Originally Posted by tc95 View Post
Craig...you probably have to put a resister in place somewhere...what's probably going on is the grip is using the batteries in series...and...your output on the Mamp is probably too high for the camera to take....if you can put an inline resister don't know what it would be...you can probably git it ito work...as far as the shutter...you need to know what the Pin-Out is at the top of the battery compartment in the camera...you should have 6 to 9 gold plates for pins to attach too...once you figure out which one is the shutter...you should be ok...two should be for focusing...then the sensor focusing...then the other functions for the camera...

Hope this helps....
Thanks tc but the A65 does not have contacts inside the battery compartment that is why there is no grip from sony. I am just going to get a cheep wired remote shutter and splice into the shutter button on the grip and run the cable out the left site to the remote port

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#10) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-24-2012, 08:16 PM


I just tried a bunch of resisters and found one (1M i think) that got the C voltage close to stock ~3.08v but when I put the batteries back into the camera "incorrect battery" showed back up. :( It is not that hard to slide out the tray and put the other battery in so I will just do that

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#11) Old
Premium Member

tc95's Avatar

Posts: 2,377
Join Date: Nov 2008
Location: Houston, TX, Texas
Real First Name: Tony
Camera: Sigma SD Camera's
Can Others Edit My Photos: Yes
iTrader Rating: 39

Likes Received LIKES Received: 82
Likes Given LIKES Given: 117
02-25-2012, 10:24 AM


Quote:
Originally Posted by craigb456 View Post
I just tried a bunch of resisters and found one (1M i think) that got the C voltage close to stock ~3.08v but when I put the batteries back into the camera "incorrect battery" showed back up. :( It is not that hard to slide out the tray and put the other battery in so I will just do that
I guess that is why I am not an ME or EE huh... ... sorry to let you down...man...

---------------------------
Sigma SD1-M Converted to Nikon F & SD14 One Converted to Nikon F and One Converted to Leica R......
Reply With Quote
  (#12) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-25-2012, 10:27 AM


Quote:
Originally Posted by tc95 View Post
I guess that is why I am not an ME or EE huh... ... sorry to let you down...man...
It is okay man it was a good idea and worth a shot

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#13) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-28-2012, 02:19 PM


The Light bulb just went off. I am going to implant a wireless trigger receiver into the grip so I can have a wireless trigger built in and the shutter button on the grip to use :)

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
  (#14) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
02-28-2012, 08:57 PM


**shutter update**

I went around town looking for wireless shutters with receivers that are about the same as the sony battery size and I fond a Vivitar Canon one that was almost perfect

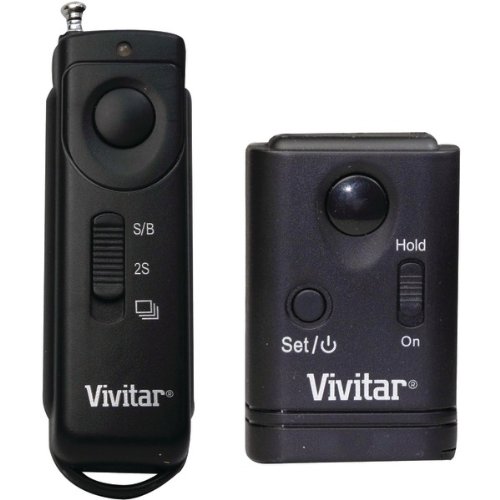

Here is a photo of it before I tore it open


Figuring out the pin out of the wireless shutter release


Figured out the pin out of the wireless shutter release


Wireless shutter receiver modded to fit in the battery compartment


stay tuned for more :)

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!

Last edited by craigb456; 02-29-2012 at 02:27 AM..
Reply With Quote
  (#15) Old
Forum Regular

craigb456's Avatar

Posts: 604
Join Date: Nov 2008
Location: Houston, Texas
Real First Name: Craig
Camera: Sony A55
Can Others Edit My Photos: No
iTrader Rating: 2

Likes Received LIKES Received: 87
Likes Given LIKES Given: 252
03-01-2012, 11:52 AM


Extending the shutter button wires


Extended the shutter button and power switch wires


shutter release cable installed


Wires ran and grip put back together almost done :)

---------------------------
I CAN HAZ A77?!?
Check out the NEW Pixtus Photography Cheat Sheet!
Reply With Quote
Reply

Tags
a65, grip, sony

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



Visit Our Sponsors


Google Sponsors

Premium Members do not see Google advertisements. SIGN UP today and help support our community.

Copyright ©2004 - 2011, Abel Longoria - www.Pixtus.com
Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2012, vBulletin Solutions, Inc.
